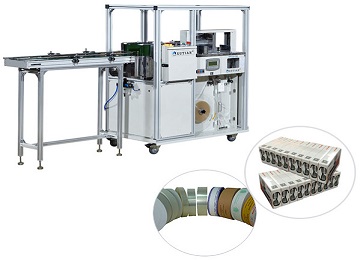

Automatic Pharmacy Box Banding Machine [WK04-30AM10]
Description
The WK04-30AM10 Automated Banding System will bring ease to your packaging line by neatly banding your small boxes / packages in easily handleable bundles. The WK04-30AM10 uses a dual conveyor belt setup to automatically stand boxes / packages up and accumulate them into the automatic pusher. The pusher then feeds the boxes / packages into the banding machine and applies a nice secure band.
Features
- Bands products with Paper Tape or Plastic Film
- Completely automated and highly efficient process
- Automatically stands boxes / packages on edge for more efficient space usage
- Automatically accumulates and batches boxes / packages
- Pneumatically operated pusher
- Adjustable conveyor speeds and pusher size
- Easily adjustable side guides
- 6.25” Schneider touch screen make job setup easy
- Four Casters on the WK04-30AM10 increase its mobility
Specification
| Tape Width |
Available in 20 mm (.78”) 30 mm (1.18”) 40 mm (1.57”) 50 mm (1.96” ) |
| Tape Thickness | Plastic: 50-80 μ | Paper: 120 μ |
| Material | Kraft Paper Banding or Plastic Banding Film |
| Net Weight | 370 lbs (170 kg) |
| Welding Method | Heat Sealing |
| Banding Tension | 5-50 N |
| Speed | Depends on Box Size |
| Product Size | Built to Customer Need |
| Power | 110/220 Volt, 500 Watt, 4.5 Amps |
| Machine Size | 87.2″ long (221.5 cm) x 26.5″ wide (67.5 cm) x 56.2″ high (143 cm) |
